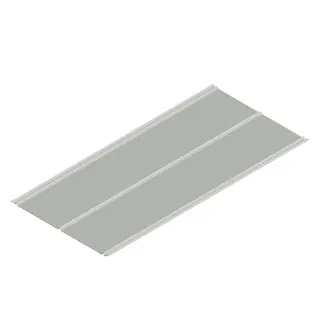

“Sentrigard 5V” Roof Panel

5v Panel; max width 24″; Exposed fastened with #12 Hex-Head WoodZip Screws fastening metal panel to minimum 15/32″ plywood decking; maximum 24″ row spacing; Maximum Allowable Roof Uplift Pressure (steel): -128.0 psf @ 12″ Fastener Spacing; -154.0 psf @ 6″ Fastener Spacing; Oil Canning is a characteristic of light gauge architectural metals and is not a flaw and therefore is not a cause for rejection.

  • Architectural Exposed Fastener Metal Roofing System
  • Ideal for residential and light commercial applications
  • Tested panel for rated assemblies achieves higher performance levels
